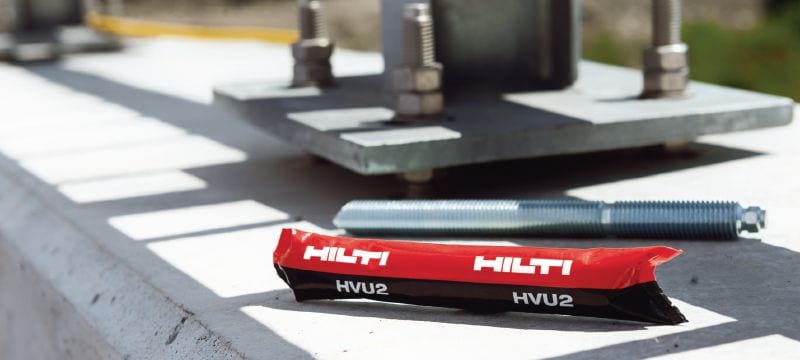

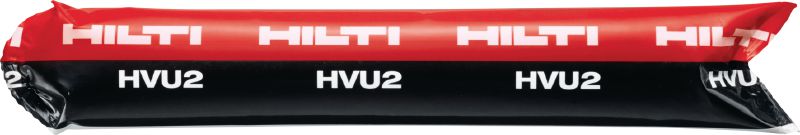

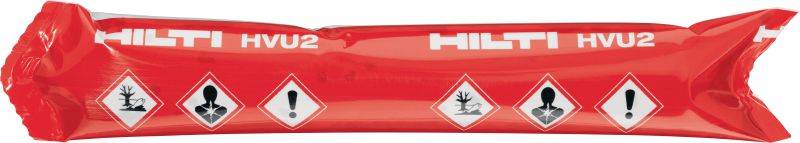

HVU2 Anchor capsule
New productItem #r6275
Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete
- Approvals / test reports: ETA, Fire
- PROFIS software: Yes
- Material composition: Hybrid urethane methacrylate adhesive
Features & Applications
Features & Applications
Features
- Tough and resilient soft foil capsule – no more risk of breakage, like with glass capsules
- Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
- High performance in seismic and static conditions in cracked and uncracked concrete

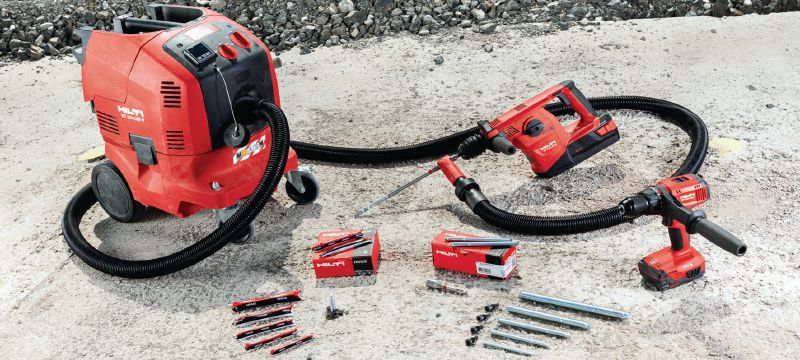

- Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
- Fast and convenient installation and no need to purchase a special setting tool
Applications

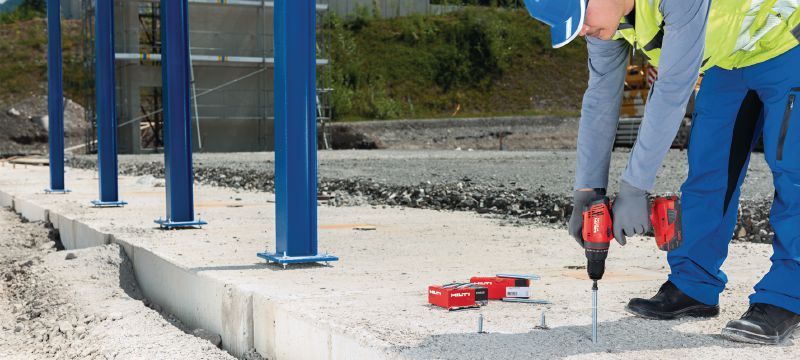

- Anchoring steel structures (e.g. racking, guard rails, fences and gates)
- Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
- Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
- Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
- Anchoring curtain wall facades
For approval or certificate information, please see individual items.
