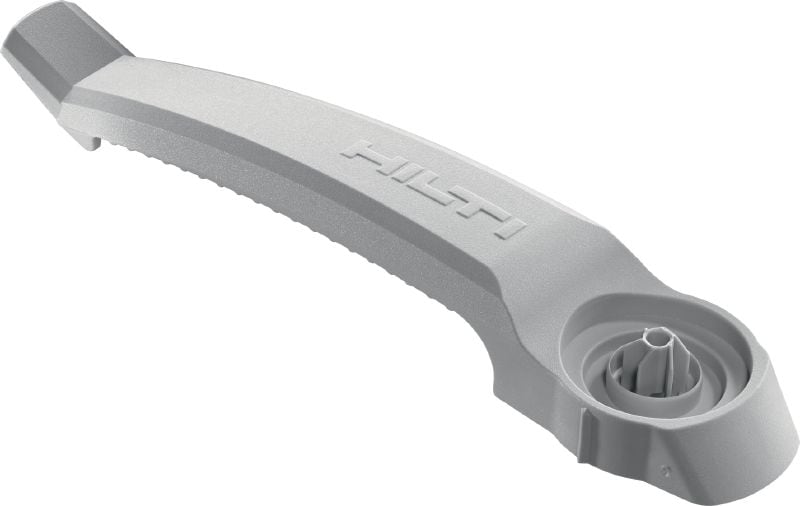

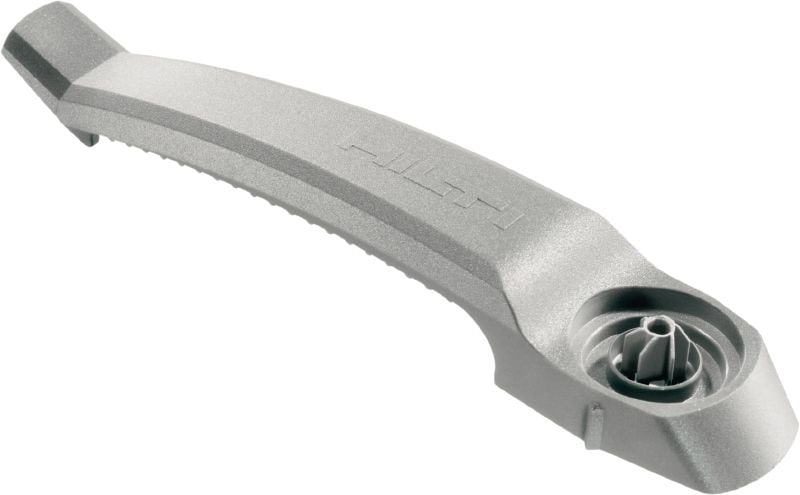

X-EKB MX Cable clamp
New product
Premium
Item #r3169
Plastic cable clasp for use with collated nails
- Application: Cable Fastenings, Conduit Fastening
- Material: Polyamide (PA), Halogen-free
- For use with (tools): BX 3, DX 351, DX 460, DX 5, DX 6, GX 3
Features & Applications
Features & Applications
Features
- Friction-fit in the nose of BX/GX/DX nailers for easy handling
- UL listed, plenum rated
- Flame-retardant version available
- Easy cable insertion
- Virtually dust-free fastening
Applications

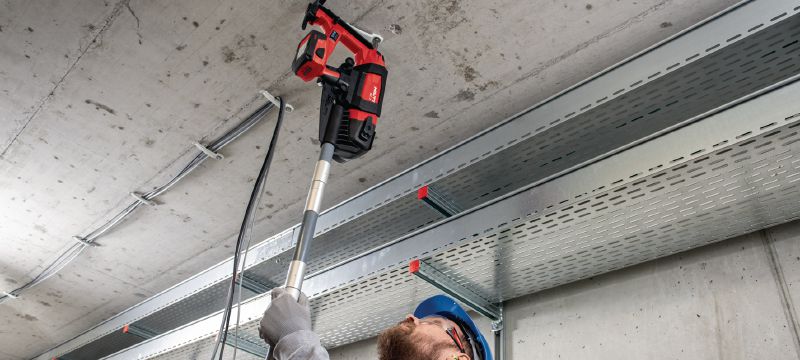

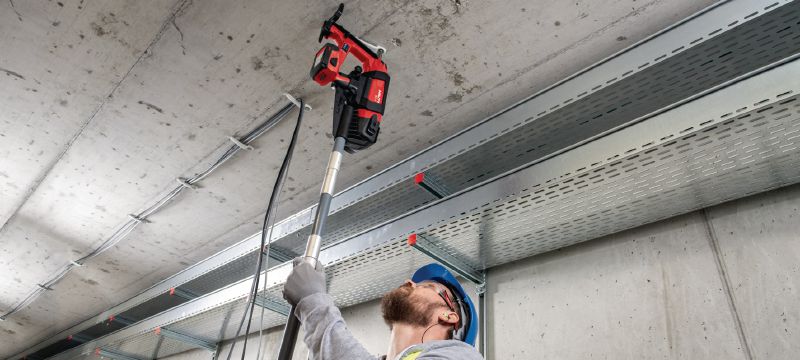

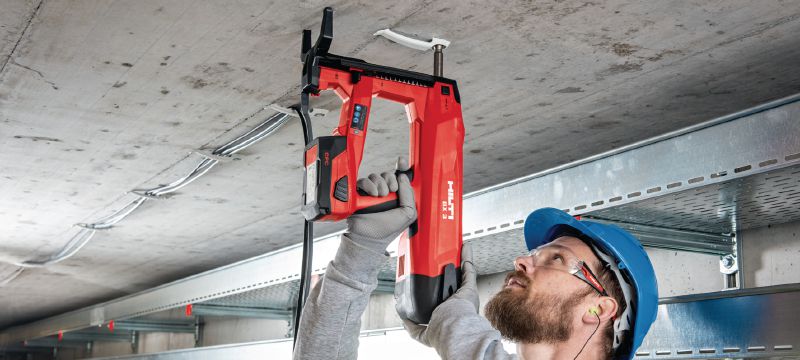

- Fastening multiple electrical cables flat on the working surface
- Typical spacing between cable clasps ranges from 50-100 cm – load and cable stiffness must be taken into account
- Typically spacing between fastening elements ranges from 50 cm to 100 cm Load and cable stiffness need to be considered
For approval or certificate information, please see individual items.
