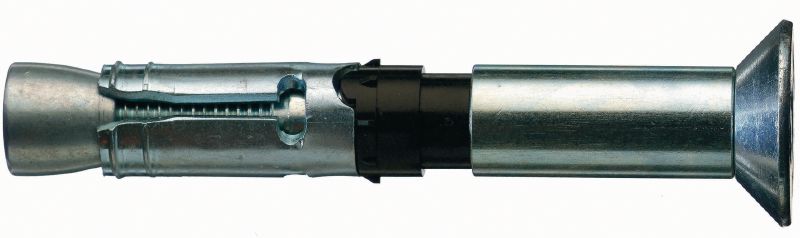

HSL-3-SK Heavy-duty wedge anchor

Item #r2816

Ultimate-performance heavy-duty wedge anchor with approvals for flush-mount fastenings in concrete (carbon steel, countersunk)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Countersunk
Approvals / test reports: ETA, Fire, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

More technical data

Customers also searched for anchors for dynamic loads, anchoring, heavy-duty anchor, anchors or expansion anchor

Features & Applications

Features

Aesthetic appearance and no tripping hazard due to flush installation
High tensile and shear load capacity, force-controlled expansion allows follow-up expansion
ETA Option 1 for cracked and uncracked concrete
ICC-ES/AC 193 for cracked or uncracked concrete and seismic applications
Suitable for dynamic loading including fatigue, seismic and shock

Applications

Fastenings in safety-relevant and/or dynamic applications where a flush installation or aesthetic appearance is required, including applications in nuclear power plants
Applications where extensive approval back-up or technical back-up is required

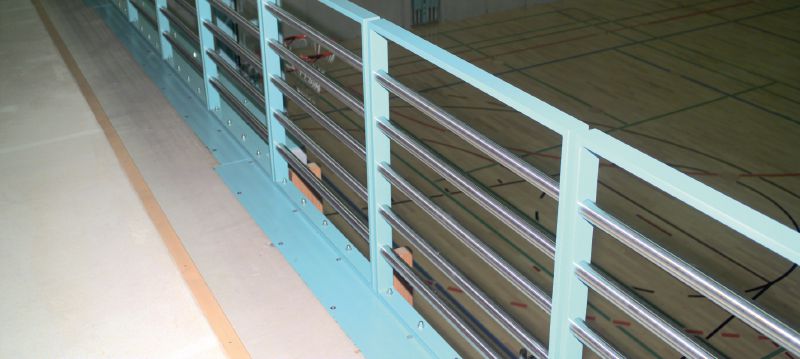

Examples are medical equipment, hand rails, machines, car hoists, safety fences, pumps, etc.
