MSG 1,75
New productItem #r7069

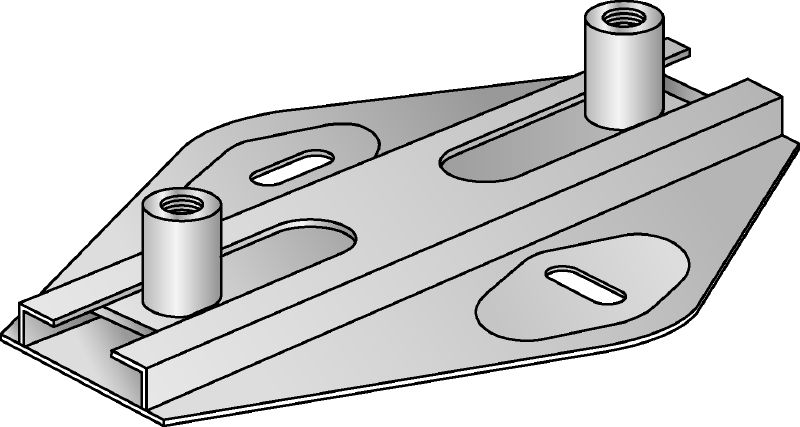

Premium galvanised slide connector for light-duty heating and refrigeration applications
- Thread connection - M: M12, M16
- Height - H: 35 mm
- Maximum load - F: 1.75 kN
Features & Applications
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Smooth sliding movement on integrated plastic guide
- Slide cannot pull out
Applications
- Mounting pipes subject to thermal elongation and contraction
- Single-point fastening of pipes or in combination with modular support systems
- Recommended for use in dry, interior environments
