MC-72 OC-A
New productItem #r1228887

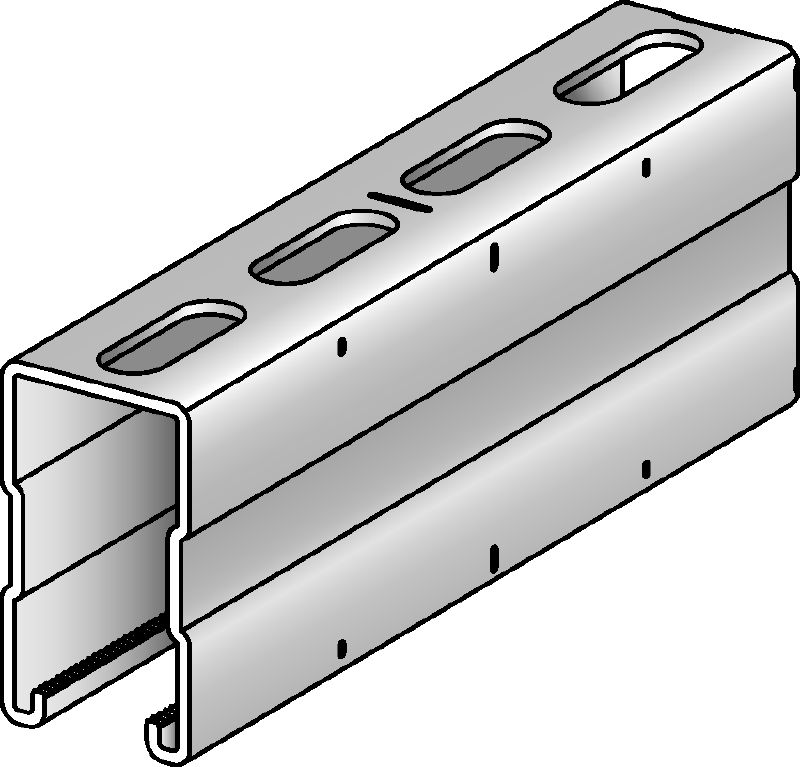

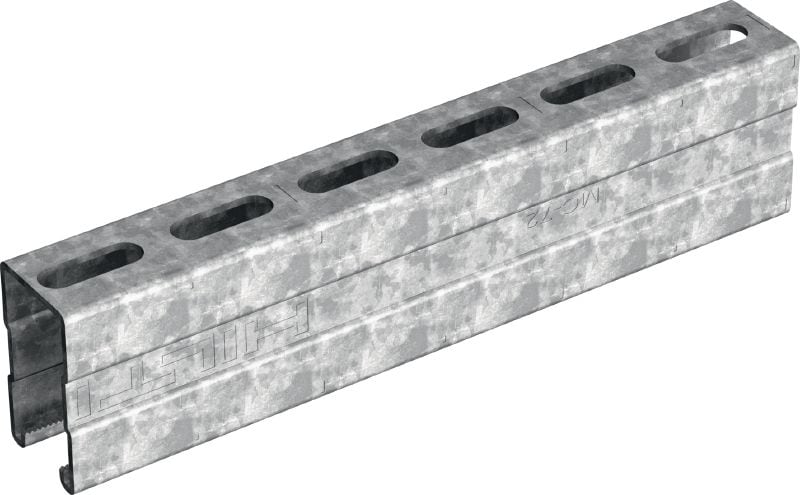

Hot-dip galvanised (HDG) installation channel for higher load requirements and outdoor use
- Height: 72 mm
- Material thickness: 2.75 mm
- Material composition: Structural steel with minimum yield strength of 235 N/mm2
Features & Applications
Features & Applications
Features
- Easier adjustment due to serrated open face
- High load capacity
- Dimension marks to simplify cutting and installation
- Slotted back to simplify connection of additional elements
Applications
- Cable tray support structures
- Instrumentation support structures
- Integrated floor support structures
- Secondary steel support structures
