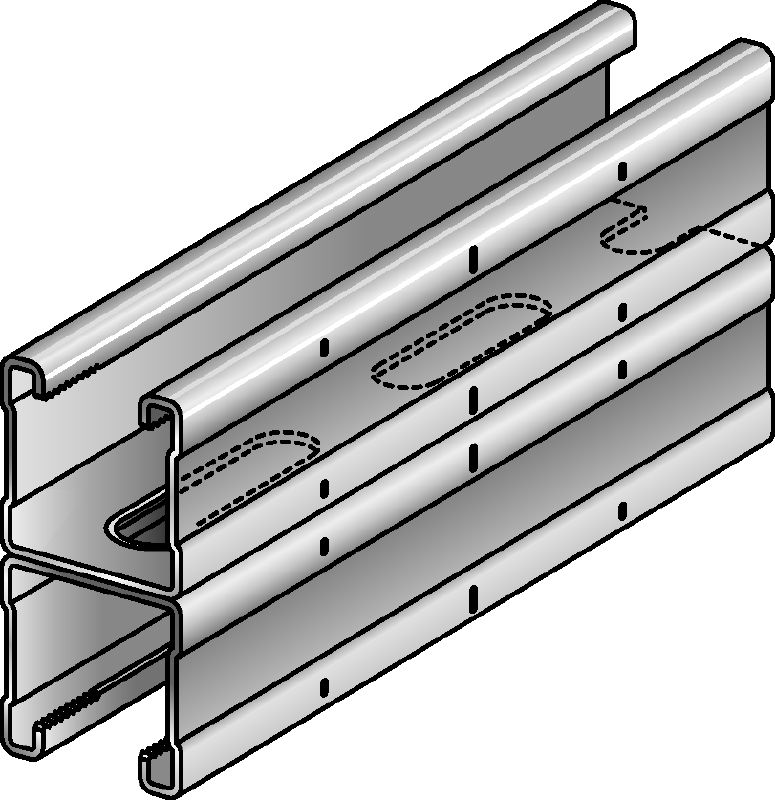

MQ-41 D-R channel
New productItem #r4334
Stainless steel (A4) MQ installation double channel for medium-duty applications
- Height: 82.6 mm
- Material thickness: 2 mm
- Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Features & Applications
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Installation on both sides possible – for high application flexibility
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for installation in industrial atmospheres or areas with heavy condensation
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
For approval or certificate information, please see individual items.
