MP-MI
New productItem #r1269

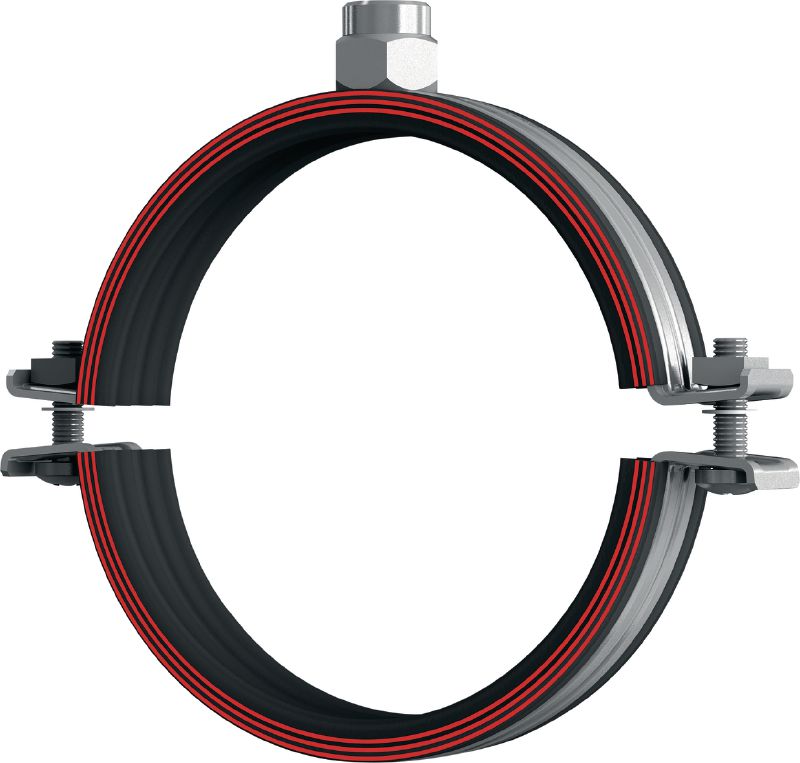

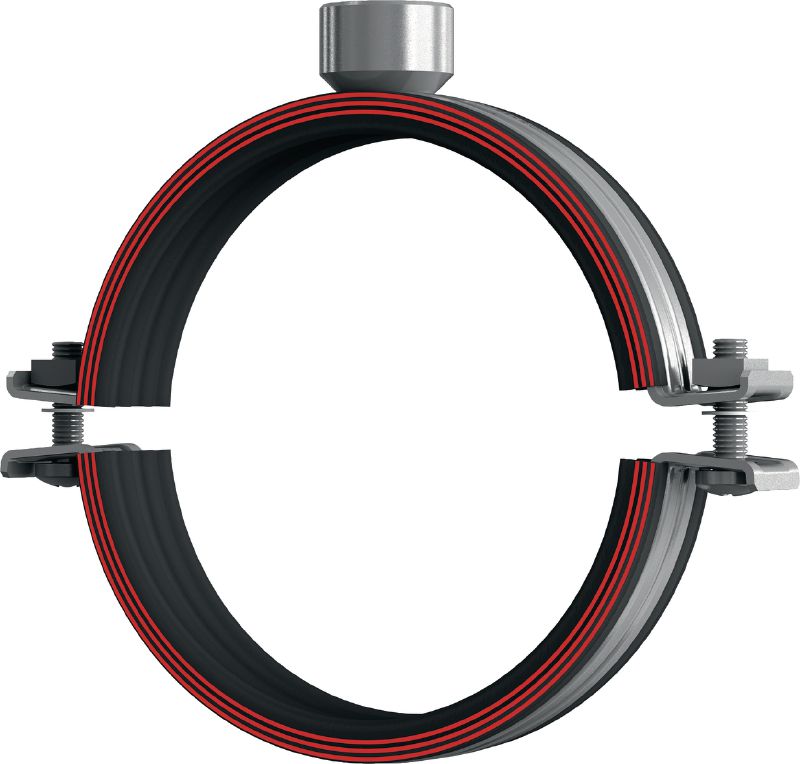

Premium galvanised pipe clamp with sound inlay for heavy-duty piping applications
- Noise reduction: 19 dB (A)
- Temperature resistance: -40 - 110 °C
- Material composition: S235JRG - DIN EN 10025
Features & Applications
Features & Applications
Features
- Solid, welded nuts for closing screws (diameter 68/72 mm and above)
- Pre-assembled non-slip rubber profile
- Profiled clamp band for higher rigidity
Applications

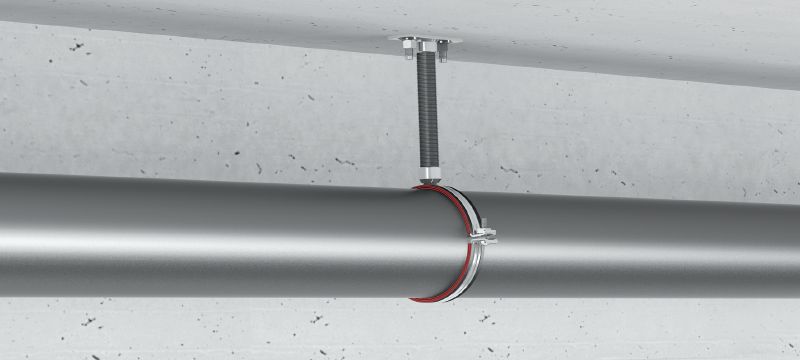

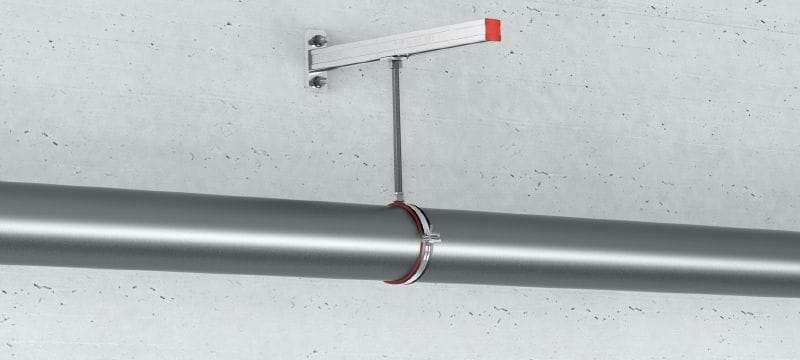

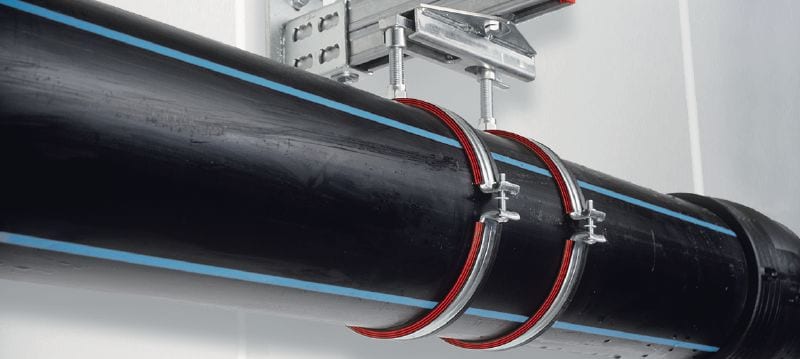

- Heavy-duty pipe installations with diameters up to 168 mm
- Installation of industrial pipework
- Mounting process and control lines
- Heavy-duty plumbing and heating applications
- Recommended for use in dry, interior environments
