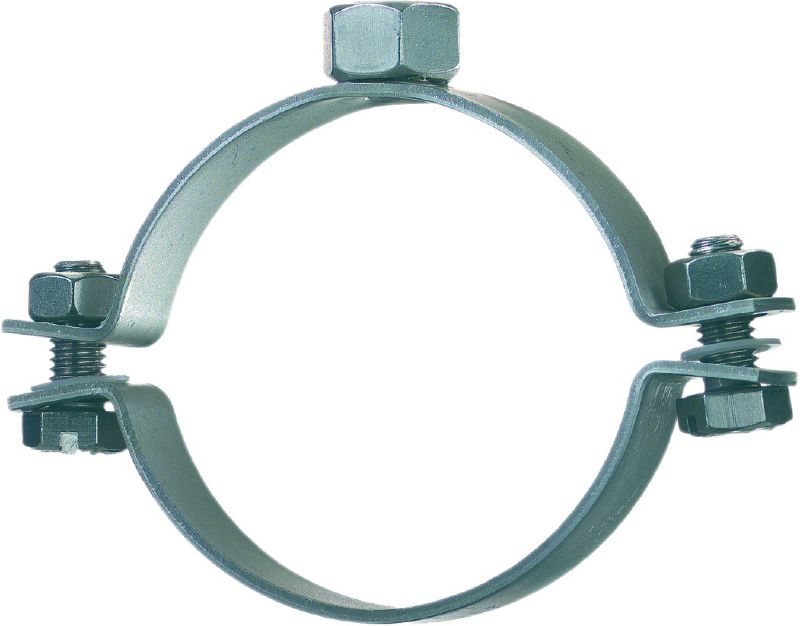

MP-SRN Pipe clamp light-duty
New product
Standard
Item #r1282
Standard stainless steel pipe clamp without sound inlay for light-duty applications
- Maximum load - F: 2000 N
- Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
- Surface finish: Outdoor Plus - Stainless Steel
Features & Applications
Features & Applications
Features
- High resistance to corrosion (A4 stainless steel)
- Short connection head allows installation close to a wall, floor or ceiling
- Pipe ring with verified fire resistance as per DIN 4102, part 2
- Closure screw secured to prevent loss
- Short connection boss allows installation close to walls and ceilings
Applications
- Light-duty pipe installations up to 2"
- Heating, plumbing and industry applications in corrosive environments
- Mounting pipes in food industry and in water treatment
- Water treatment
