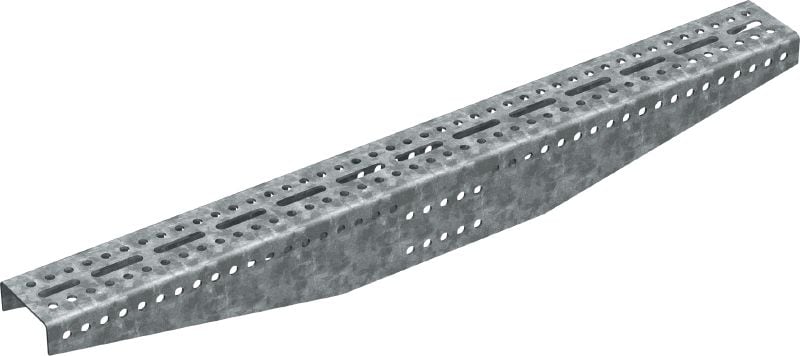

MT-U-GL1 OC T-beam
New productItem #r12283752
Flange for constructing T-beams using MT girders, for outdoor use with low pollution
- Material composition: Q355 or better steel
- Surface finish: Hot-dip galvanised - for outdoor use
- Material thickness: 4 mm
Features & Applications
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
- Optimised load-to-weight ratio – engineered for maximum pipe ring/cable tray capacity with minimum self-weight
- Economical & efficient - enabling the construction of "T" frames - reducing material, time and anchorage points to the base material
- Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
Applications

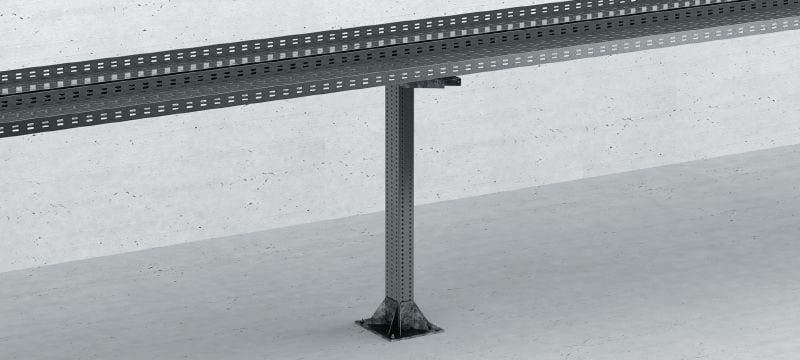

- Constructing T-beams to support heavy-duty MEP installations by fastening to an upright MT-90 or MT-100 girder
- Suitable for use in moderately corrosive environments
