MC-AH-90 OC-A
New productItem #r1229102

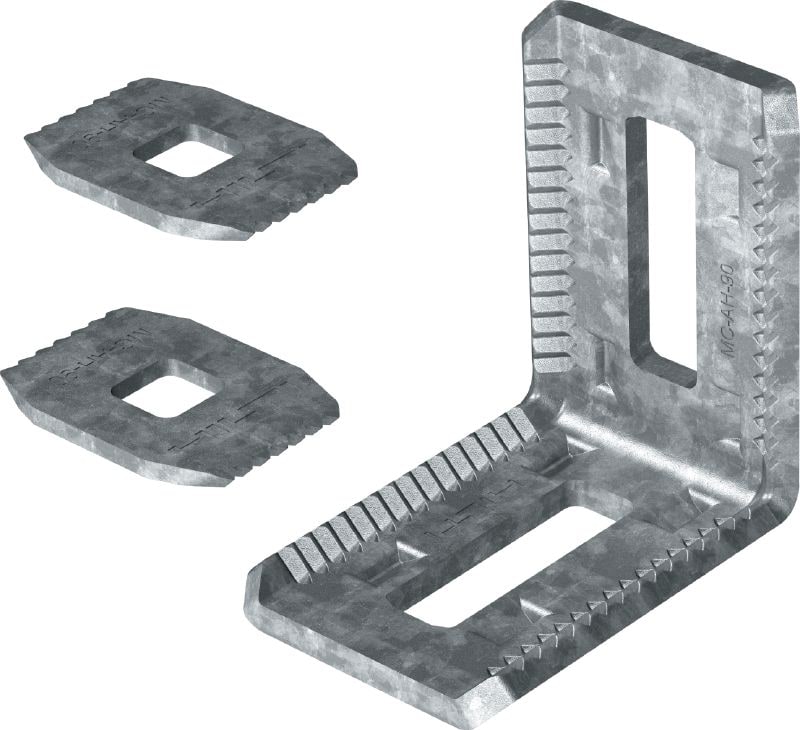

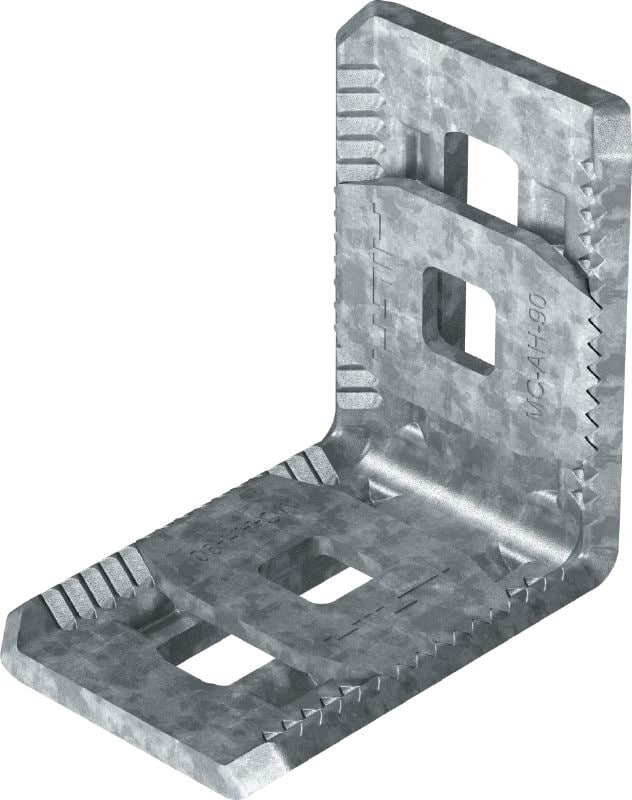

Galvanised, adjustable angle connector for the 90-degree attachment of MC-3D channels to one another outdoors
- Material composition: Structural steel with minimum yield strength of 235 N/mm2
- Surface finish: Hot-dip galvanized, 56 µm - ASTM A153
- Material thickness: 4 mm
Features & Applications
Features & Applications
Features
- High application flexibility
- Easy height adjustment along full channel length and on all channel faces
- High shear load capacity
Applications
- Connecting any two MC channels at 90 degrees
- Assembly of two and three-dimensional modular system structures
