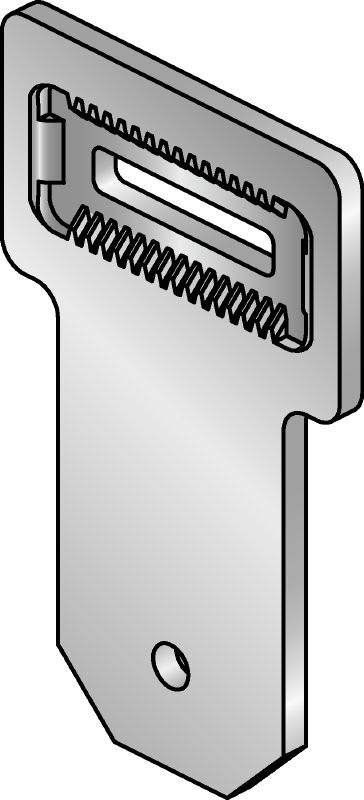

MIC-U-MA Connector
New productItem #r6193
Hot-dip galvanised (HDG) multi-angle connector used with MIC-MAH connectors for fastening MI girders to one another at an angle
- Weight: 2.63 kg
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Tooth plate: S235 - EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Customers also searched for cable tray installations, metal connectors, connecting girders, piping installations or 3d channel systems
Features
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@c746497b, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@f59ecdc3, unit=null, value=Connector comes with self-locking nuts to help protect against vibration}], id=CHA_ADVANTAGE_02, multiValue=false, name=Advantage 02}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@40035251, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@5962012f, unit=null, value=Can be finely adjusted by up to 5 mm}], id=CHA_ADVANTAGE_03, multiValue=false, name=Advantage 03}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@abd3bddb, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@d347ee67, unit=null, value=Keyed hold for optimum transmission of forces and moments}], id=CHA_ADVANTAGE_04, multiValue=false, name=Advantage 04}
Applications

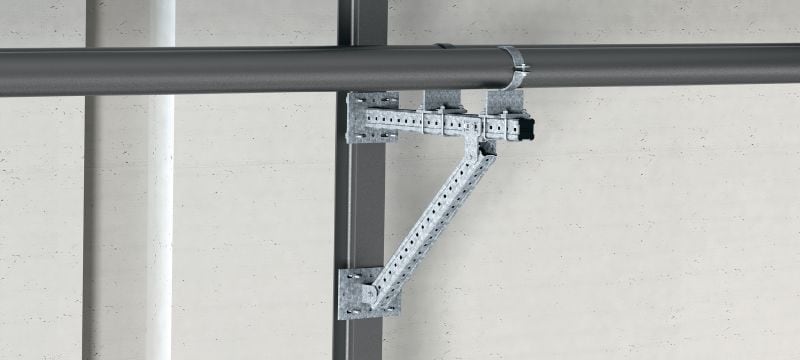

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@e2982eb6, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@52c7381c, unit=null, value=For supports or corner struts at angles between 0° and 180°}], id=CHA_APPLICATION_01, multiValue=false, name=Application 01}
