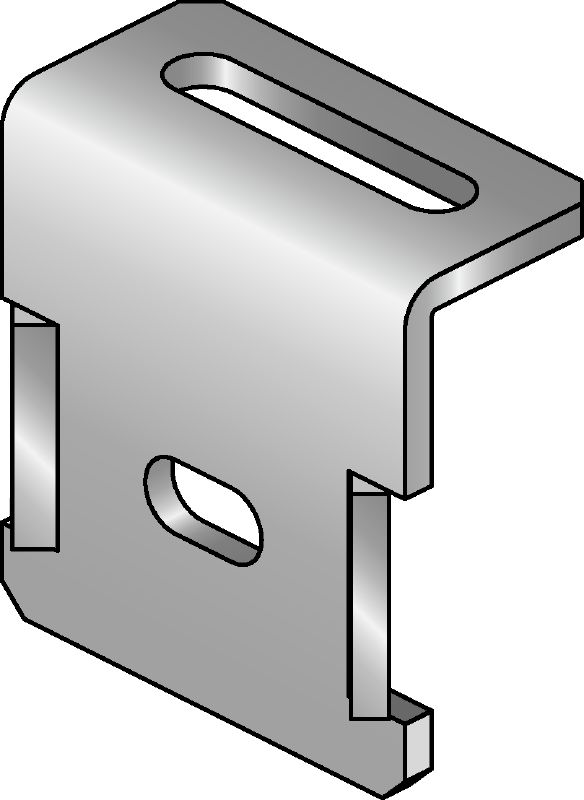

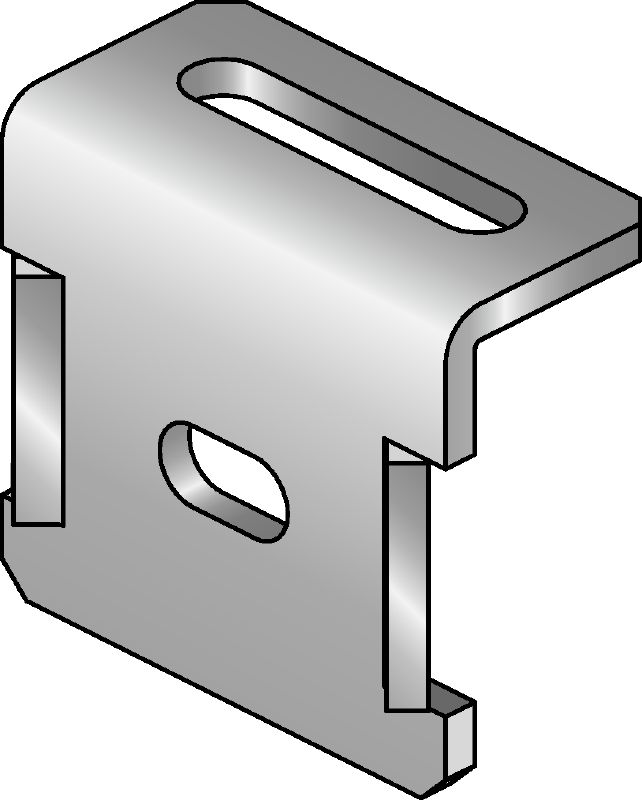

MIC-UB Connector
New productItem #r6209
Hot-dip galvanised (HDG) connector for fastening U-bolts to MI girders
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Washer: DIN EN ISO 7089; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector, square washer 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Features & Applications
Features & Applications
Features
- Higher reliability fastening system for use with U-bolts
- Elongated holes – to simplify exact positioning
- Pipe position infinitely adjustable thanks to the oblong hole
- Positive engagement for efficient load transmission
- Keyed hold for optimum transmission of forces
Applications

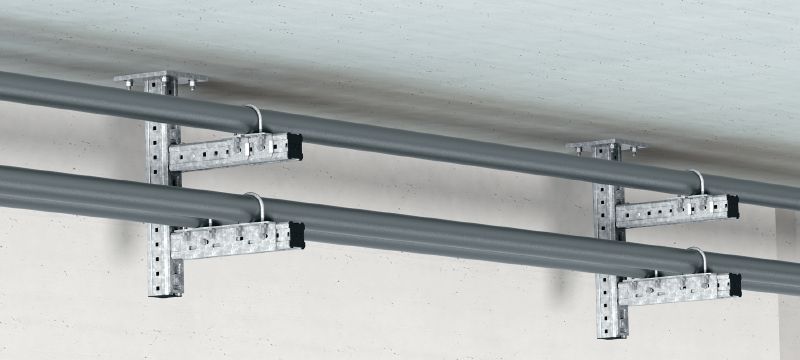

- Fastening uninsulated pipes with U-bolts (not included)
- Fastening with U-bolts (not included)
