MIC-L Connector
New productItem #r6211

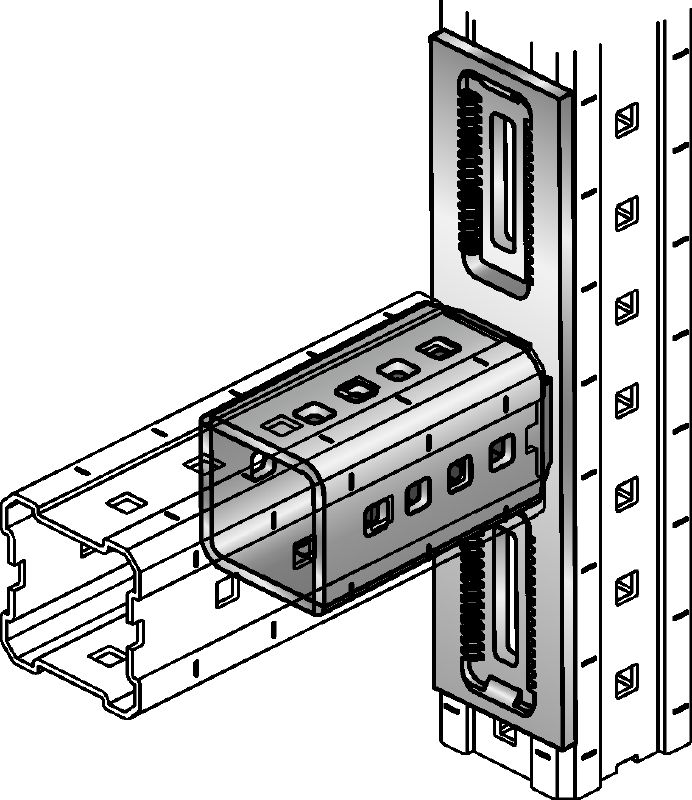

Hot-dip galvanised (HDG) connector for fastening MI girders perpendicularly to one another
- Weight: 4.05 kg
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Backing plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-7 - DIN EN 1562; Tooth plate: S235 - EN10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; backing plate, toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Customers also searched for cantilever connections, metal connectors, connecting girders, connectors or 3d channel systems
Features
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@aa526fc3, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@ea7feff9, unit=null, value=Provides a strong and rigid connection}], id=CHA_ADVANTAGE_01, multiValue=false, name=Advantage 01}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@8300f8b1, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@c8c75a4d, unit=null, value=Adjustable by up to 50 mm during installation}], id=CHA_ADVANTAGE_02, multiValue=false, name=Advantage 02}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@40035251, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@5962012f, unit=null, value=Can be finely adjusted by up to 5 mm}], id=CHA_ADVANTAGE_03, multiValue=false, name=Advantage 03}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@c74650ff, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@f59ecdc3, unit=null, value=Connector comes with self-locking nuts to help protect against vibration}], id=CHA_ADVANTAGE_04, multiValue=false, name=Advantage 04}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@5f5a817e, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@9ee72226, unit=null, value=No welding required – for faster, more efficient installation}], id=CHA_ADVANTAGE_05, multiValue=false, name=Advantage 05}
Applications

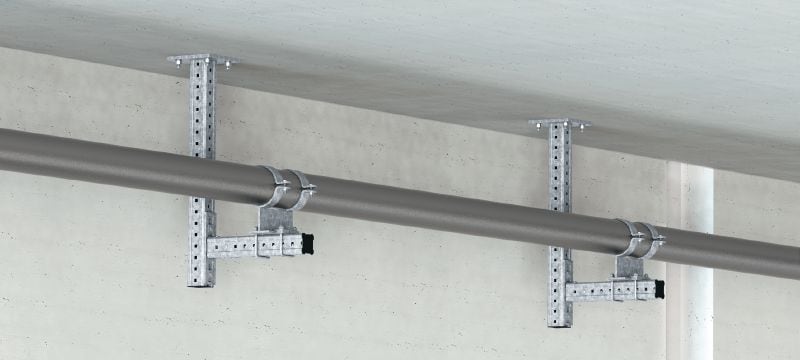

- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@7423539a, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@6b64ddb8, unit=null, value=Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel}], id=CHA_APPLICATION_01, multiValue=false, name=Application 01}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@268cf8e0, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@aee64ab4, unit=null, value=Provides flexible solutions for industrial and heavy commercial applications, eliminating the need for welding}], id=CHA_APPLICATION_02, multiValue=false, name=Application 02}
- HiltiFeatureData{super=com.hilti.holng.facades.product.data.HiltiFeatureData@41b8fffb, dimension=LANGUAGE, lovDimension=null, featureType=TEXT, featureValueList=[HiltiFeatureValueData{super=com.hilti.holng.facades.product.data.HiltiFeatureValueData@74bbadfb, unit=null, value=Cantilever connections}], id=CHA_APPLICATION_03, multiValue=false, name=Application 03}
Product Information
Technical Data
Documents
Application videos
-
Modular support systems.
